Tangerine

  • Air cooled system up to 20 W IR
  • FemtoTrig™ feature
  • Industrial and compact design

Femtosecond laser for research and development in micro processing and scientific applications

The Tangerine is a powerful ultrafast laser combining both high repetition rate (going up to 40 MHz and adjustable according to your needs) and high energy per pulse going up to 250 μJ.

Tangerine femtosecond laser is available with green, UV and deep UV outputs.

Versatile and full-featured, Tangerine femtosecond laser can offer Short Pulse (< 150 fs pulse width) configuration and be associated to a large range of add-ons.

The Tangerine product is the ideal solution for research and development applications processes.



Available Options



SHG

    • Doubles laser frequency through non-linear optics
    • Enhancing imaging precision and material processing in femtosecond lasers

THG

    • Triple laser frequency for advanced applications.
    • Revolutionize imaging and material processing precision in femtosecond lasers.

FHG

    • Quadruples laser frequency, enabling new frontiers.
    • Redefines imaging accuracy and material processing precision in femtosecond lasers.
SpecificationsTangerineTangerine HPTangerine HP2Tangerine SP
Average Power> 20 W> 35 W> 50 WUp to 50 W
Energy Per Pulse> 200 µJ> 200 µJ> 250 µJUp to 200 µJ
Pulsewidth< 350 fs to > 10 ps< 350 fs to > 10 ps< 350 fs to > 10 psFrom < 150 fs to 10 ps
Repetition RateFrom single shot to 40 MHzFrom single shot to 40 MHzFrom single shot to 40 MHzFrom single shot to 40 MHz
Central wavelength1030 nm +/- 5 nm1030 nm +/- 5 nm1030 nm +/- 5 nm1030 nm +/- 5 nm

Compare with other products

You can compare up to 3 products at the same time

Product
Wavelength
Spectral bandwidth
Energy
Average Power
Pulse Duration
Repetition rate
Satsuma X-28
1030 nm +/- 5nm
< 3 nm
> 280 µJ
> 28 W
< 400 fs
Single shot to 40 MHz
Satsuma X-50
1030 nm +/- 5nm
< 3 nm
> 500 µJ
> 50 W
< 400 fs
Single shot to 40 MHz
Tangor 100 IR
1030 nm +/- 5nm
< 3 nm
> 500 µJ / Up to 700 µJ
> 100 W
< 500 fs to 10 ps
Single shot to 40 MHz
Tangor 100 Green
515 nm +/- 2,5 nm
< 1 nm
> 250 µJ
> 50 W
< 500 fs to 5 ps
Single shot to 40 MHz
Tangor 100 UV
343 nm +/- 1,7 nm
< 0,5 nm
> 150 µJ
> 30 W
< 500 fs to 2 ps
Single shot to 40 MHz
Tangerine
1030 nm +/- 5nm
< 10 nm
> 200 µJ
> 20 W
< 350 fs to > 10 ps
Single shot to 40 MHz
Tangerine HP
1030 nm +/- 5nm
< 10 nm
> 200 µJ
> 35 W
< 350 fs to > 10 ps
Single shot to 40 MHz
Tangerine HP2
1030 nm +/- 5nm
< 10 nm
> 250 µJ
> 50 W
< 350 fs to > 10 ps
Single shot to 40 MHz
Tangerine SP
1030 nm +/- 5nm
< 10 nm
> 200 µJ
> 50 W
< 150 fs
Single shot to 40 MHz
Satsuma
1030 nm +/- 5nm
< 10 nm
> 10 µJ
> 5 W
< 350 fs to > 10 ps
Single shot to 40 MHz
Satsuma HP
1030 nm +/- 5nm
< 10 nm
> 20 µJ
> 10 W
< 350 fs to > 10 ps
Single shot to 40 MHz
Satsuma HP2
1030 nm +/- 5nm
< 10 nm
> 60 µJ
> 20 W
< 350 fs to > 10 ps
Single shot to 40 MHz
Satsuma HP3
1030 nm +/- 5nm
< 10 nm
> 60 µJ
> 50 W
< 350 fs to > 10 ps
Single shot to 40 MHz

General Information

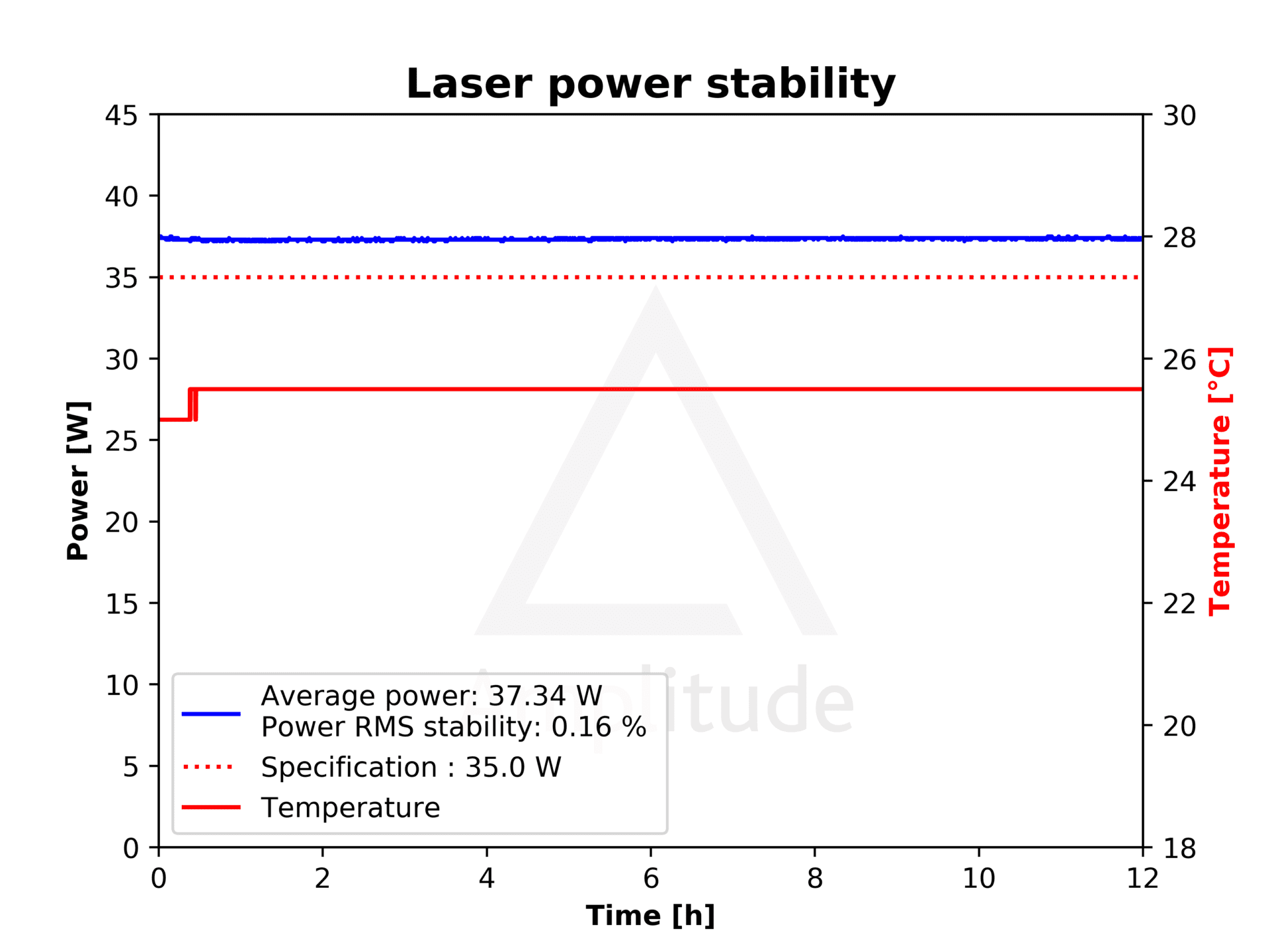

Stability
