Precision & Control in one box
FOCUS is a compact and robust femtosecond fiber laser designed for seamless integration into space-limited systems. Based on the Satsuma platform, it delivers stable ultrafast pulses while reducing footprint, system complexity and total cost of ownership.
Offering 5 W average power, pulse energies up to 25 µJ and repetition rates from single-shot to 40 MHz, FOCUS combines sub-250 fs pulse duration with excellent beam quality to address demanding applications in life sciences, medical devices and semiconductor processing.
Turn-key and easy to integrate, FOCUS supports applications such as waveguide and photonic chip fabrication, semiconductor metrology, wafer scribing for 24/7 operation, medical imaging and ophthalmology. Its air-cooled design, low acoustic noise and fast dynamic response make it particularly well suited for laboratory and medical environments.
| Specifications | FOCUS 5 |
|---|---|
| Average Power | 5 W |
| Energy per pulse | 25 µJ |

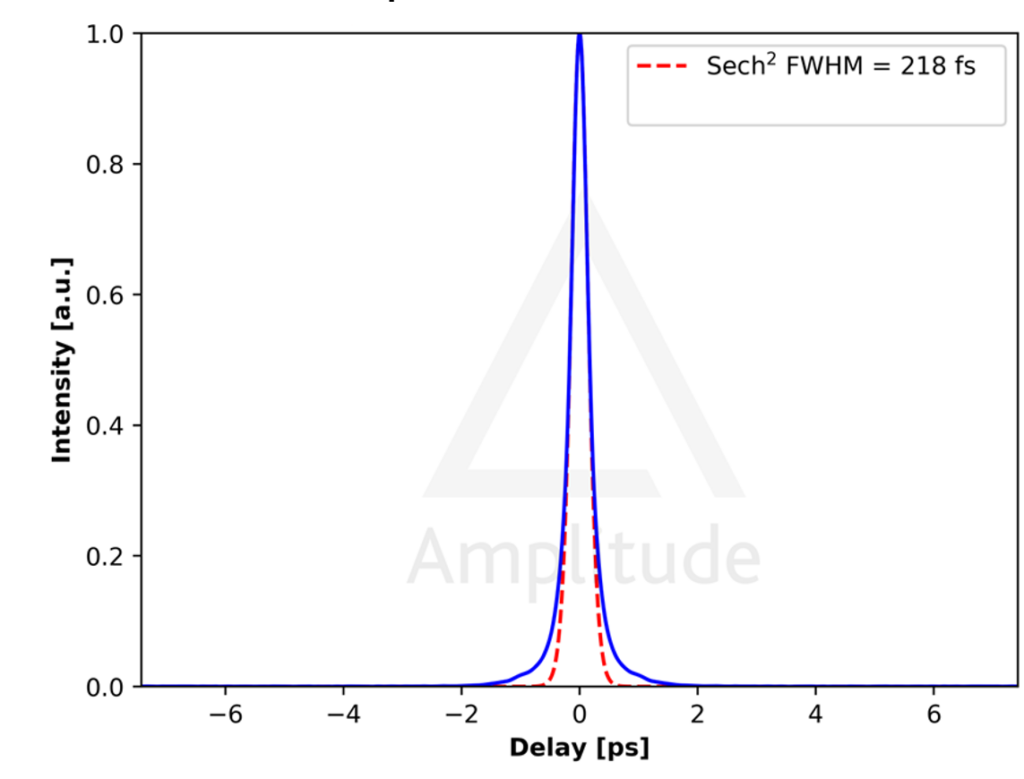

| Pulse Duration | < 250 fs |
| Repetition rate | Tunable up to 40 MHz |
| Astigmatism | < 50 % |
| Wavelength | 1030 +/- 3 nm |
| M2 | < 1.2 |
| Pointing stability | < 20 μrad /°C |
